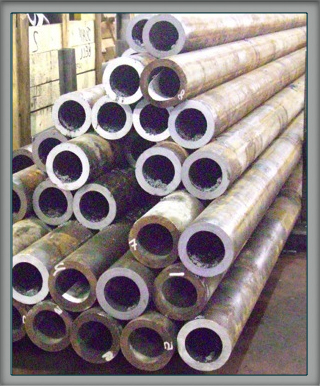

High Pressure Seamless Pipe

To complement our range of products Oilquip, UK's leading supplier of high pressure seamless pipe have a full range of specifications for structural tubulars to A519 Gr 4130, API 5L Grade X52, X60 and X65 that are held in stock, in sizes ranging from 2" nominal bore to 6". We can supply cut lengths; long pieces and even bore from forged, machined bar to satisfy your urgent demand.

The high production quality of the pipe means that the following features are guaranteed:

Controlled, uniform metallurgic structure.
Homogeneous and consistent mechanical properties.
Superior dimensional tolerances.
Smoother outer and inner surfaces.

Oilquip offer Hot Finished Tubes and in any cross section of any one tube the eccentricity will not exceed 8%.

Pipe will be supplied in 5-7 metre random lengths with butt-weld ends and varnished to avoid oxidation of the steel when in storage. All pipes are fully certified and traceable with heat numbers hard stamped onto each random length.

Certification is at no extra charge and include standards that meet the requirements of NACE MR-01-75 known in Europe as DIN 50049 3.1.b.

Nominal Pipe Size 6mm 1/8"	Outside Diameter 10.3mm .405"	SCH 10	SCH 20	SCH 30	SCH 40 1.7 .068	SCH STD 1.7 .068	SCH 60	SCH 80 2.4 .095	SCH XS 2.4 .095	SCH 100	SCH 120	SCH 140	SCH 160	SCH XXS
6mm 1/4”	13.7mm .540”				2.2 .088	2.2 .088		3.0 .119	3.0 .119
10mm 3/8”	17.1mm .675”				2.3 .090	2.3 .090		3.2 .126	3.2 .126
15mm 1/2”	21.3mm .840”				2.8 .109	2.8 .109		3.7 .147	3.7 .147				4.8 .187	7.5 .294
20mm 3/4”	26/7mm 1.050”				2.9 .113	2.9 .113		3.9 .154	3.9 .154				5.6 .218	7.8 .306
25mm 1”	33.4mm 1.315”				3.4 .133	3.4 .133		4.5 .179	4.5 .179				6.4 .250	9.1 .382
32mm 1”	42.2mm 1.660”				3.6 .140	3.6 .140		4.5 .191	4.5 .191				6.4 .250	10.2 .400
40mm 1 1/2”	48.3mm 1.900”				3.7 .145	3.7 .145		5.5 .200	5.5 .200				7.1 .281	11.1 .436
50mm 2”	60.3mm 2.875”				3.9 .154”	3.9 .154”		5.5 .218	5.5 .218				8.7 .343	14.0 .552
65mm 2 1/2”	73.0mm 2.875”				5.2 .203	5.2 .203		7.0 .276	7.0 .276				9.5 .375	15.2 .600
80mm 3”	86.9mm 3.500”				5.5 .216	5.5 .216		7.6 .300	7.6 .300				11.1 .438	15.9 .636
90mm 3 1/2”	101.6mm 4.00”				5.7 .226	5.7 .226		8.1 .316	8.1 .316					17.1 .674
100mm 4”	114.3mm 4.500”				6.0 .237	6.0 .237		8.6 .337	8.6 .337		11.1 .436		13.5 .531	19.1 .750
125mm 5”	141.3mm 5.563”				6.6 .258	6.6 .258		9.5 .375	9.5 .375		12.7 .500		15.9 .625	22.0 .875
150mm 6”	168.3mm 6.625”				7.1 .280	7.1 .280		11.0 .432	11.0 .432		14.3 .562		18.3 .719	25.4 1.000
200mm 8”	219.1mm 8.625”		6.4 .250	7.0 .277	8.2 .322	8.2 .322	10.3 .406	12.7 .500	12.7 .500	15.1 .594	16.3 .719	20.6 .812	23.0 .906	25.4 1.000
250mm 10”	273.0mm 10.750”		6.4 .250	7.6 .307	9.3 .365	9.3 .365	12.7 .500	15.1 .594	12.7 .500	18.3 .719	21.4 .844	25.4 1.000	26.6 1.125
300mm 12”	323.9mm 12.750”		6.4 .250	8.4 .330	10.3 .406	9.5 .375	14.3 .562	17.5 .688	12.7 .500	21.4 .844	25.4 1.000	26.6 1.125	33.0 1.312
350mm 14”	355.6mm 14”	6.4 .250	7.9 .312	9.5 .375	11.1 .438	9.5 .375	15.1 .594	19.1 .750	12.7 .500	23.8 .938	27.8 1.094	31.8 1.250	35.7 1.406
400mm 16”	406.4mm 16”	6.4 .250	7.9 .312	9.5 .375	12.7 .500	9.5 .375	16.7 .656	21.4 .844	12.7 .500	26.2 1.031	30.1 1.219	36.5 1.438	40.5 1.781
450mm 18”	457.2mm 18”	6.4 .250	7.9 .312	11.1 .438	14.3 .562	9.5 .375	19.1 .750	23.8 .938	12.7 .500	29.4 1.156	34.9 1.375	39.7 1.562	45.2 1.781
500mm 20”	506.0mm 20”	6.4 .250	9.5 .375	12.7 .500	15.1 .594	9.5 .375	20.6 .612	26.2 1.031	12.7 .500	32.5 1.281	38.0 1.500	44.5 1.750	50.0 1.969
600mm 24”	609.6mm 24”	6.4 .250	9.5 .375	14.3 .562	17.5 .688	9.5 .375	24.6 .968	31.0 1.218	12.7 .500	38.9 1.530	46.0 1.812	52.4 2.062	59.5 2.343
750mm 30”	762.0mm 30”	8.0 .312	12.7 .500	16.0 .625		9.5 .375			12.7 .500
900mm 36”	914.4mm 36”	8.0 .312	12.7 .500	16.0 .625	19.1 .750	9.5 .375			12.7 .500
